Intro Engineering Design
Reverse Engineering
Copy of IMG_0584_edited.JPG
Copy of IMG_0584_edited.JPG
1/8

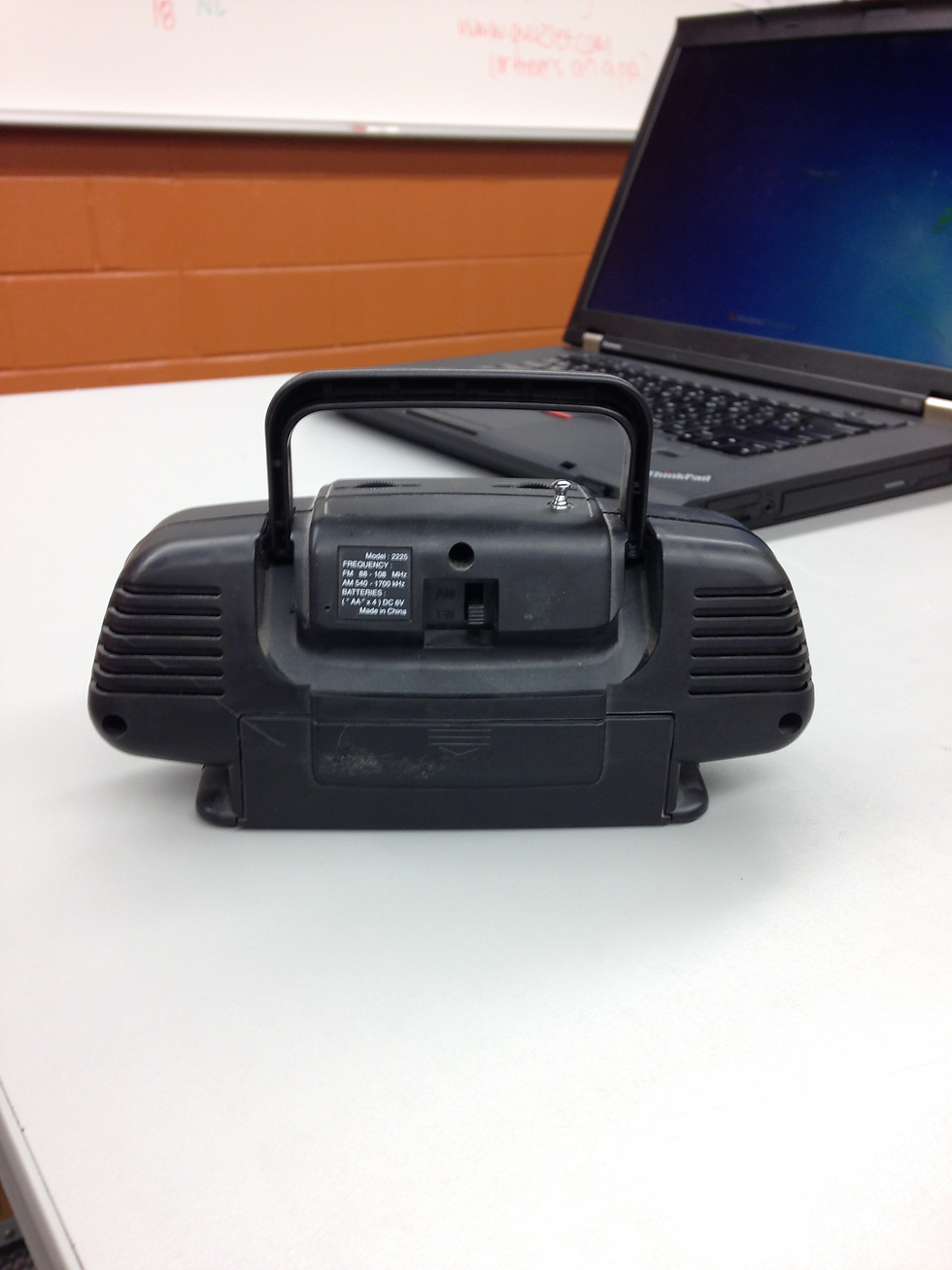

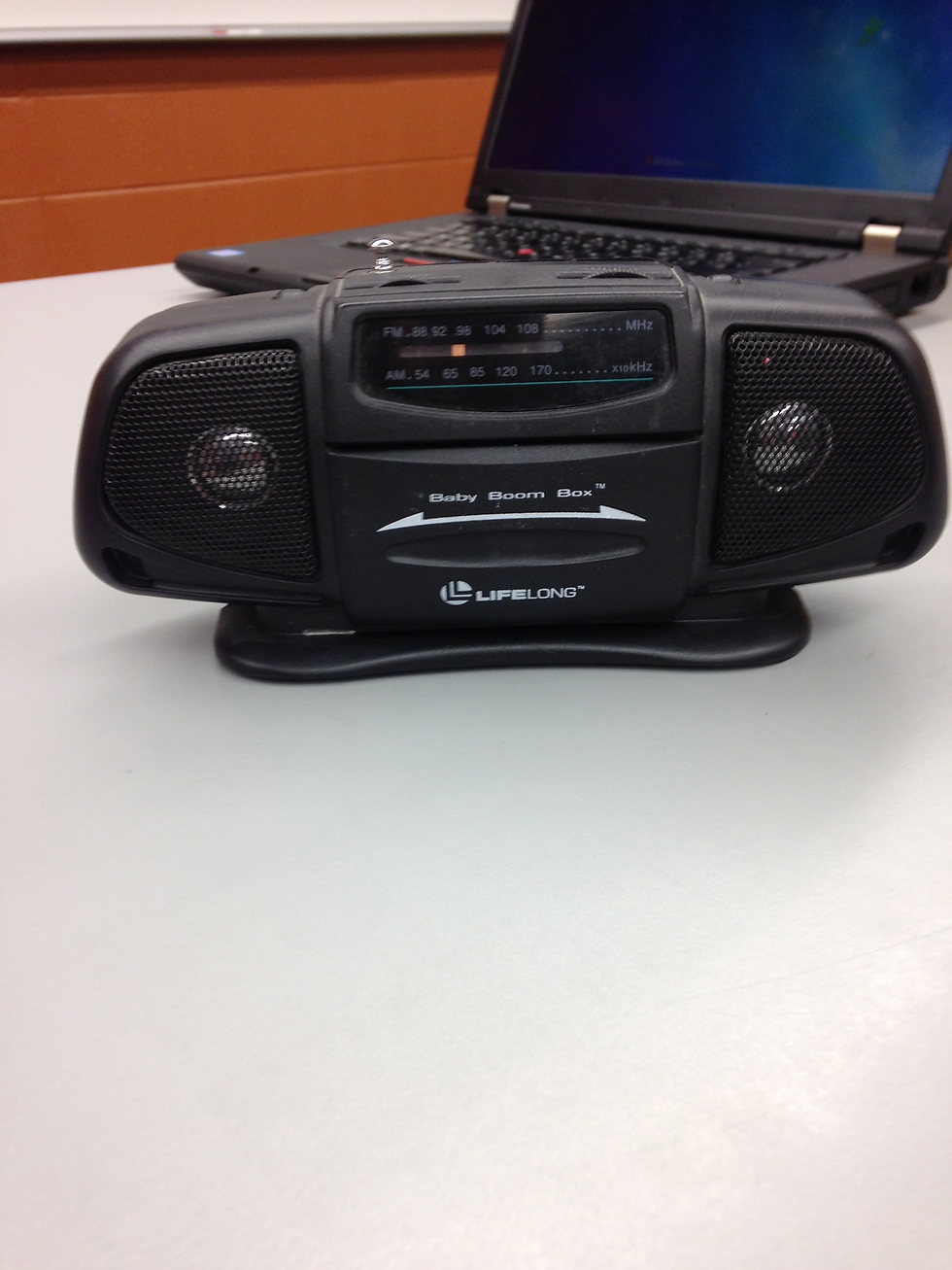

Throughout the course of one semster, me and a partner will be reverse engineering a handeld radio. During this project we will better understand the design process and 3D modeling. After sketching and creating all of the parts we will hopefully improve the radio by attatching a solar panel to remove the need for batteries.

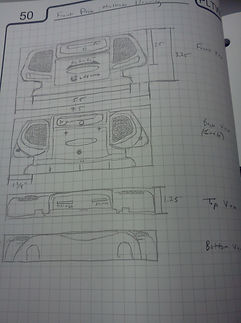

The first step was to sketch and dimension the different parts
We then 3D modeled and assembled the parts
